Veterinary infusion pump is an animal medical device used to accurately control the infusion speed and dosage to ensure the safety and effectiveness of treatment. It is widely used in critical cases, small animals, special drug infusion, and long-term infusion.
Veterinary infusion pumps have multiple functions, including precise speed control, multiple infusion modes (continuous, intermittent, pulse), alarm prompts (blockage, bubbles, low power) and data recording, which facilitates subsequent analysis and adjustment of treatment plans.
According to the use requirements, it can be divided into portable and desktop types, suitable for different scenarios such as clinics, hospitals, field emergency and scientific research experiments. When choosing, you need to consider the animal species, body size, infusion needs and budget.
The correct use of infusion pumps can significantly improve the treatment effect and reduce human errors. It is an indispensable and important tool in veterinary clinics and scientific research.

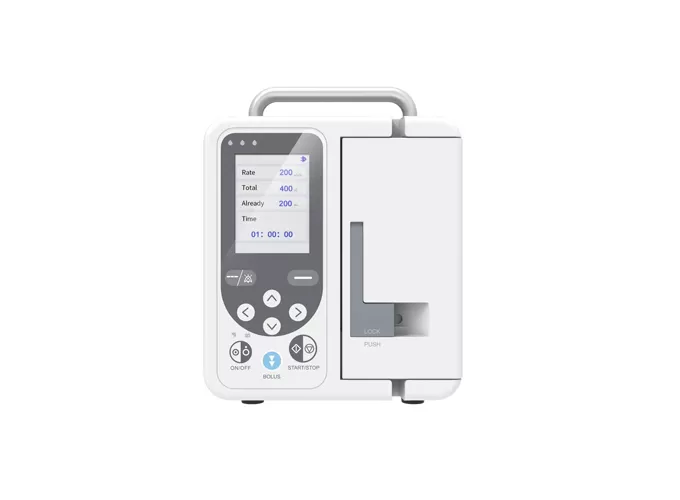

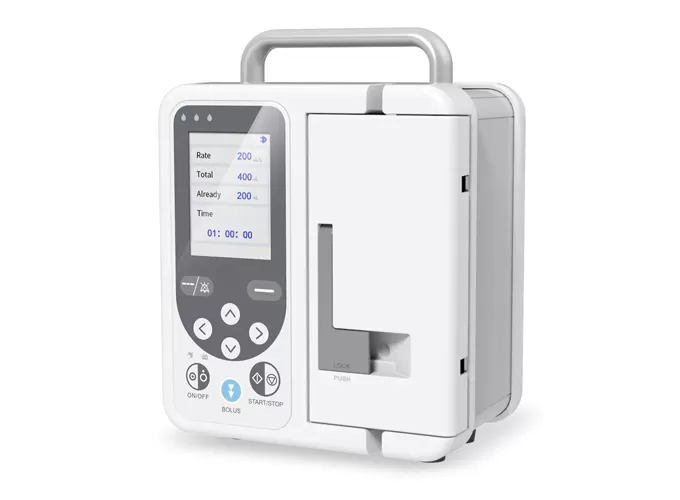

| JC750 VET Infusion Pump | |

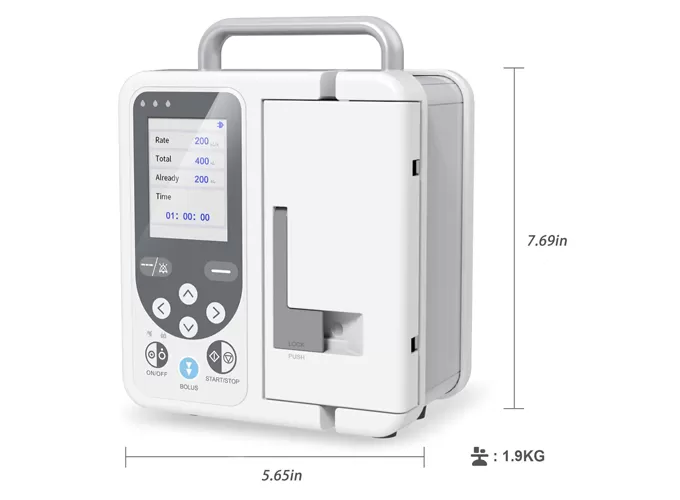

| Size(Mm) | 144*152*196 |
| Weight(G) | 1900 |
| Power Supply | AC 220V 50H or 7.4V 5000mAh rechargeable lithium battery |
| Display | 2.8" color LCD screen |
| Infusion Speed(Ml/H) | 1~699mL/h, increment: 1mL/h |
| Infusion Volume(Ml) | 1~9999mL, increment: 1mL |
| Infusion Accuracy | +5%, under the premise that the infusion set has been calibrated |
| Bubble Detector | Ultrasonic sensor with an accuracy of 0.02ml |
| KVO Flow Rate | 1ml/h |
Precise speed control: The infusion speed can be set to prevent discomfort caused by excessive infusion speed and ensure treatment safety.
Wide compatibility: It is compatible with various specifications of infusion devices, meets national measurement standards, and has strong applicability.
High safety: High-precision bubble detection function prevents air injection from causing embolism, ensures infusion safety, and has an alarm function to remind operators in time.
Widely applicable: It is suitable for various animals (from small pets to large livestock) and various scenarios (such as critical cases, surgery, and chronic disease management).
Versatility: It supports multiple infusion modes (continuous, intermittent, and pulse) to meet different treatment needs.
Convenient operation: Large screen design, clear information display, convenient and fast operation, and improved use efficiency.
Intelligent monitoring: Multi-dimensional sensors monitor in real time, intelligent alarm protection, and rapid alarm for abnormal conditions (such as pipeline blockage, liquid is about to run out, abnormal infusion speed, etc.) to ensure treatment reliability.

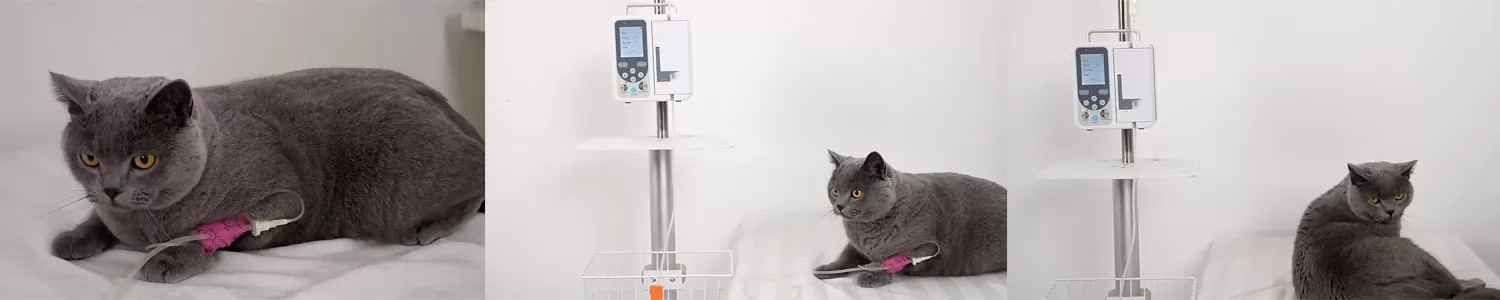

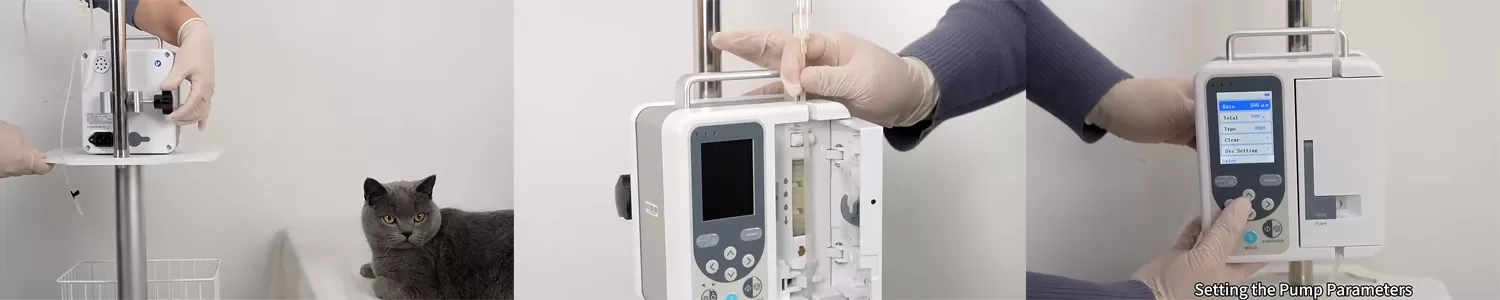

1. Installation

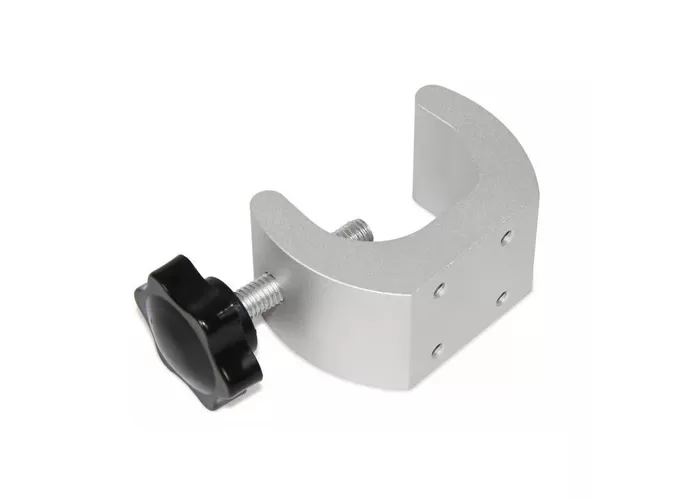

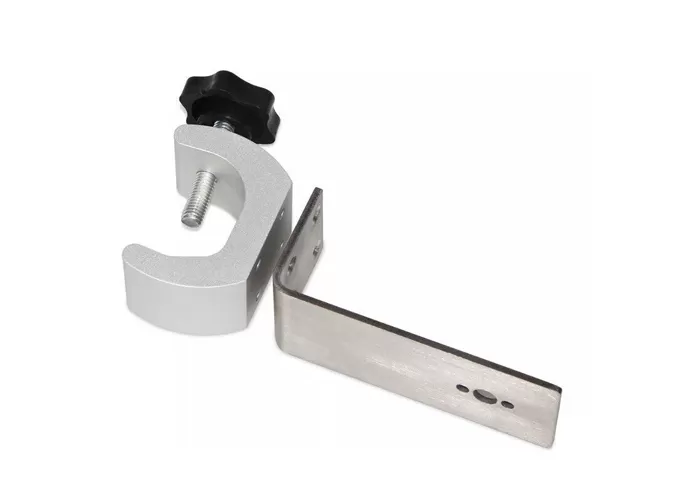

Install and fix the infusion pump.
Insert the tubing into the infusion pump slot to ensure that there is no twisting.
Start the instrument and set the infusion pump parameters according to the pet's body size and medication situation.
2. Start infusion
Make sure the pet's indwelling needle is well fixed and connect the tubing to start infusion.
3. Monitoring and care
Observe the infusion speed and animal reaction, and handle abnormal alarms.
4. End
After the infusion is completed, turn off the power, remove the needle and press to stop bleeding.
Clean the equipment and record the infusion data.
Shock rescue
Poisoning first aid
Low-dose infusion
Low-weight animals
Anesthesia management
Chemotherapy drug injection
Postoperative recovery fluid or nutritional support
Chronic disease management
Scientific research and experiments
First aid and field treatment
