Hemodialysis catheters are medical consumables designed for patients with acute and chronic renal failure to establish temporary or long-term extracorporeal blood circulation pathways to support dialysis treatment. During dialysis, the catheter safely draws the patient's blood out of the body, purifies it to remove metabolic waste and excess water through the dialysis machine, and then returns the clean blood to the body, effectively replacing part of the kidney function. This catheter is particularly suitable for patients who need emergency dialysis or cannot establish an arteriovenous fistula. With its convenient operation and stable blood flow characteristics, it has become an indispensable vascular access in maintenance dialysis treatment.
This catheter adopts a humanized soft-head cone design, which can be easily inserted into the blood vessel without a peelable catheter sheath, significantly reducing the damage to the blood vessel during insertion. The side hole is located 2.5 cm away from the end hole, which scientifically reduces blood bypass and blood vessel wall suction, thereby minimizing the risk of thrombosis. Its radiopaque material ensures clear development under X-ray, which is convenient for precise positioning and adjustment. The rotatable suture wing not only facilitates skin inspection, but also avoids catheter displacement and blood vessel wall adsorption, reduces the risk of exit infection, and prevents catheter kinking. The silicone extension tube design improves the patient's long-term comfort, is not easy to curl and deform, and the transparent tube body facilitates real-time observation of the liquid state.

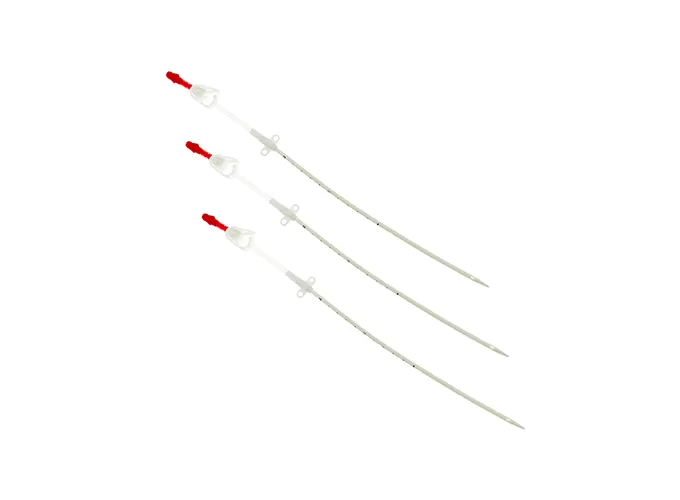

To meet different clinical needs, the catheter is available in a variety of specifications such as single-lumen, double-lumen and triple-lumen. The application of medical polyurethane (PU) material makes it both flexible and anti-kink, ensuring the reliability of long-term use, and the pre-bent design further optimizes the wearing comfort. This hemodialysis catheter, which combines safety, comfort and functionality, provides patients with efficient and reliable treatment support.

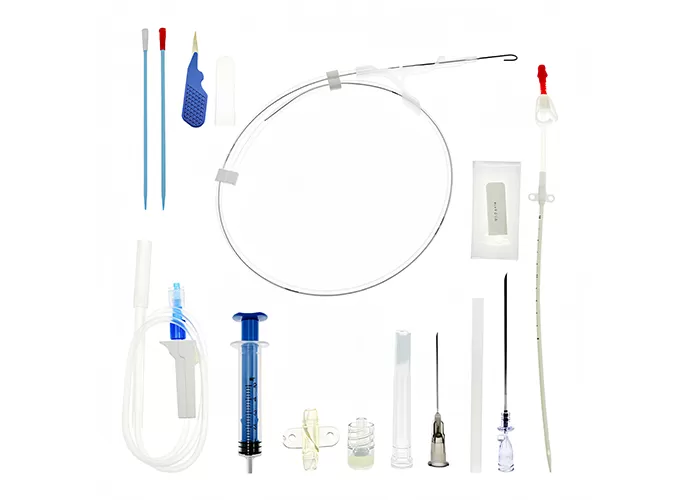

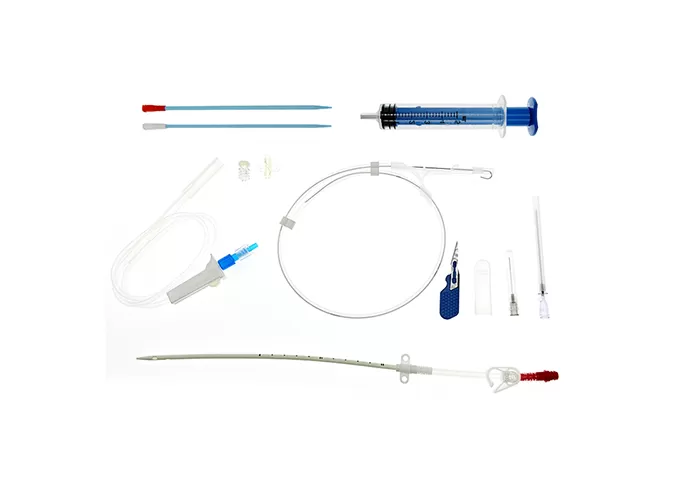

| Hemodialysis Catheter | |
| ITEM | Specification |
| Lumen | Single Lumen/Double Lumen/Triple Lumen |
| Catheter Size | 6.5Fr/7Fr/8Fr/8.5Fr/10F/11.5Fr/12Fr/14Fr |
| Catheter Length(cm) | 5/8/10/13/15/16/20/25 |

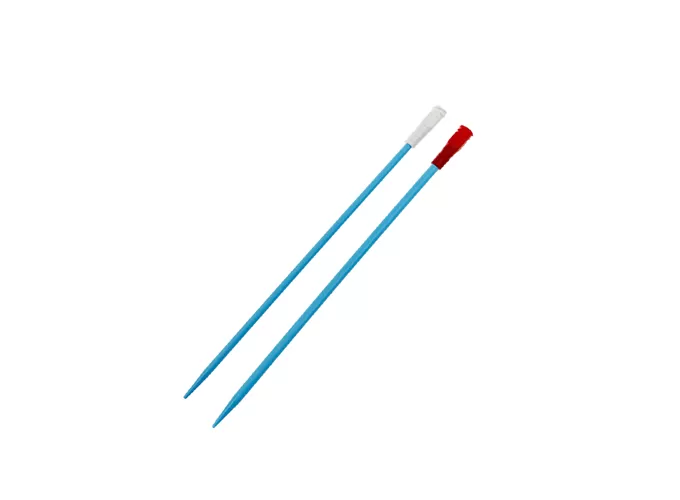

| Dilator | 9F×10cm/10F×15cm/12F×15cm/14F×15cm |

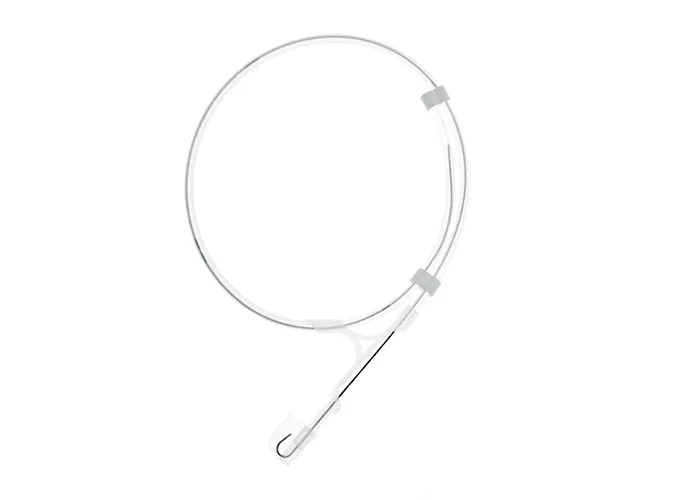

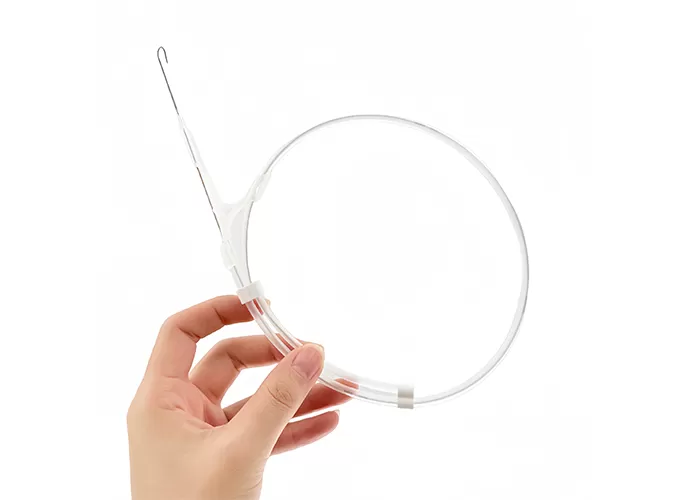

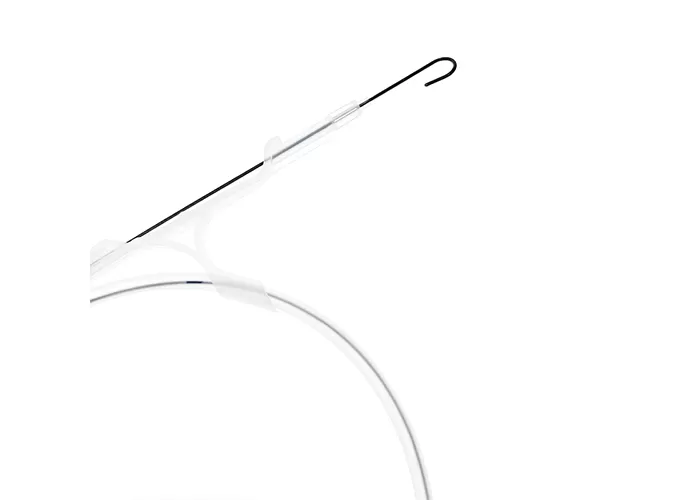

| Guidewire | 0.025"×50cm/0.038"×50cm/0.038"×60cm/0.038"×70cm |
| Shape ofExtension Tube | Straight/Curved |
| Welcome to consult us for detailed model information and quotation! | |

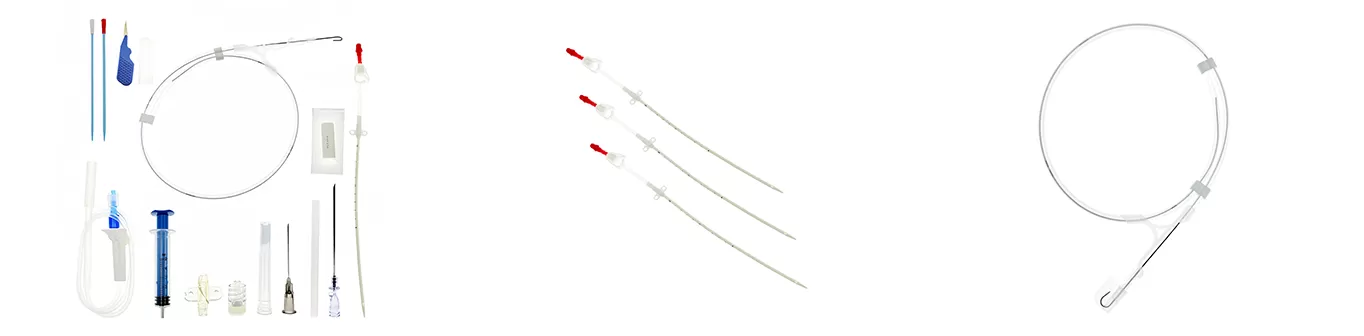

Choose the appropriate catheter model (single-lumen, double-lumen or triple-lumen) according to the patient's condition.
Strictly disinfect the puncture site and lay sterile towels to establish a sterile operating area.
Use local anesthesia to relieve pain for patients.
Puncture the target vein, dilate the subcutaneous channel after inserting the guidewire, and then send the catheter into the blood vessel along the guidewire.
Confirm that the tip of the catheter is located in the superior/inferior vena cava by X-ray or ultrasound (about 15-18cm for internal jugular vein catheterization and about 20-25cm for femoral vein).

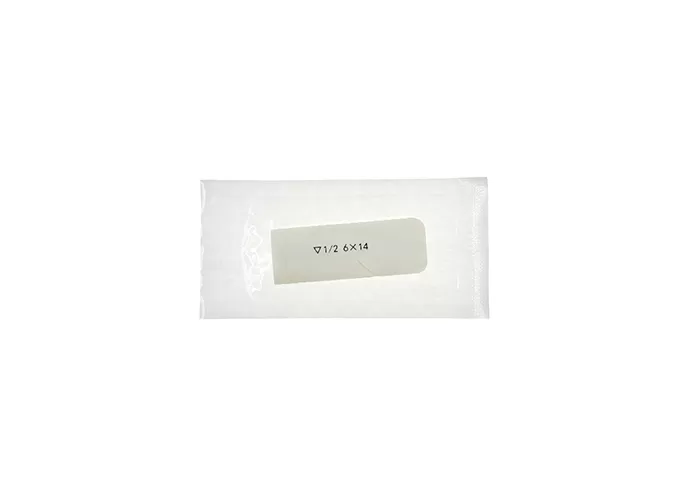

Fix the catheter, cover it with sterile dressing, and connect the heparin cap or prefilled sealing solution to prevent thrombosis.
Disinfect the catheter interface before dialysis, extract the sealing solution and possible thrombus, and connect the blood line to start treatment.
Precautions: Strictly follow aseptic operation to avoid twisting or pulling of the catheter, and promptly handle fever, bleeding, etc.

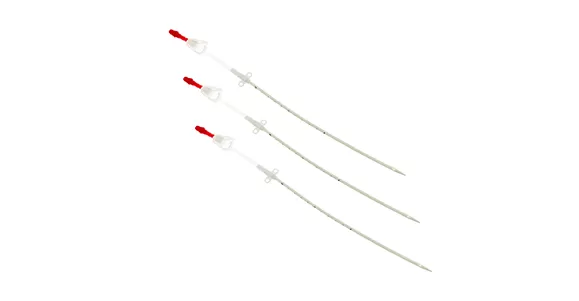

Soft-tip conical design: can be easily inserted without a peelable catheter sheath, significantly reducing the risk of vascular injury and improving the safety of catheterization.
Scientific side hole layout: the side hole design 2.5cm away from the end reduces blood bypass and vascular wall adsorption, effectively reducing the probability of thrombosis.
Radiopaque material: clear development under X-ray, convenient for accurate positioning during surgery and postoperative catheter position adjustment.
Rotatable suture wings: convenient for skin fixation and inspection, avoiding catheter displacement and vascular injury, and reducing the risk of infection.

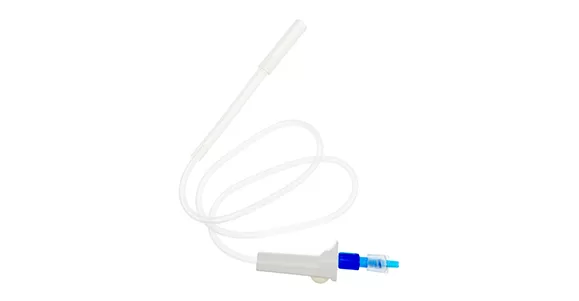

Silicone extension tube: soft, durable and non-deformable, transparent tube wall is convenient for observing liquid and improving patient comfort.
Multi-chamber optional configuration: single-chamber, double-chamber and triple-chamber options are available to meet different dialysis treatment needs.
Medical polyurethane material: both flexibility and anti-kink properties to ensure long-term stability and safety.
Pre-bent ergonomic design: fits the patient's body shape, reduces wearing discomfort, and improves treatment tolerance.

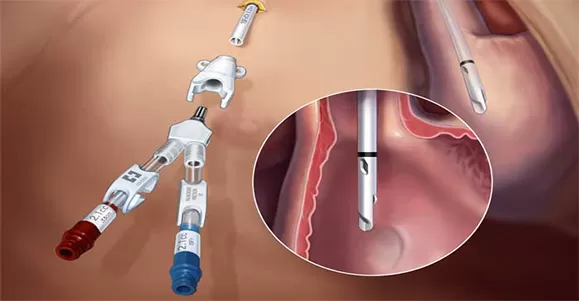

Application
Rescue of acute kidney injury: quickly establish hemodialysis access and deal with critical conditions such as hyperkalemia.
Chronic dialysis transition period: maintain patients' regular dialysis treatment needs before the internal fistula matures.
Patients with limited vascular access: provide dialysis access for patients who cannot establish arteriovenous fistulas.
Intensive care treatment: the preferred access solution for ICU patients who need emergency blood purification.
Special blood purification: support special treatment needs such as plasma exchange and hemoperfusion.
Pediatric dialysis patients: solve the problem of children's thin blood vessels and special blood flow requirements.
Elderly dialysis patients: suitable for the elderly group with poor vascular conditions and many underlying diseases.
Temporary access needs: dialysis support during short-term treatment or waiting for kidney transplantation.
