The HBsAg Test from JCMED is a high-performance diagnostic assay designed for the accurate and early detection of Hepatitis B Surface Antigen (HBsAg), a key marker for Hepatitis B Virus (HBV) infection. This HBsAg blood test plays a critical role in screening, diagnosis, and monitoring of HBV, helping to prevent liver disease progression and transmission.
Key Features
High Sensitivity & Specificity: Detects HBsAg at low concentrations, ensuring reliable results even in early-stage infections.
Multiple Formats Available: Includes rapid lateral flow tests (10-15 minutes), ELISA, and chemiluminescence assays for versatile use in labs, clinics, and field settings.
User-Friendly Design: Simple procedure with clear visual results (for rapid tests) or automated analysis (for ELISA/CLIA).
CE Certified: Manufactured under strict quality standards for consistent performance.
JCMED’s HBsAg blood test is an essential tool for healthcare providers, offering reliable and efficient detection of HBV to support effective patient care and public health initiatives.
| HBsAg Test | |||
| HBsAg Hepatitis B Surface Ag Test Strip | WB/S/P | Strip | 50T |
| HBsAg Hepatitis B Surface Ag Test Cassette | WB/S/P | Cassette | 25T |

Collect whole blood, serum, or plasma via venipuncture or fingerstick (depending on test type).
For rapid tests, use the provided capillary tubes or droppers to transfer 10-50 µL of the sample.
For ELISA/PCR, centrifuge blood samples (if required) and aliquot into sterile tubes.

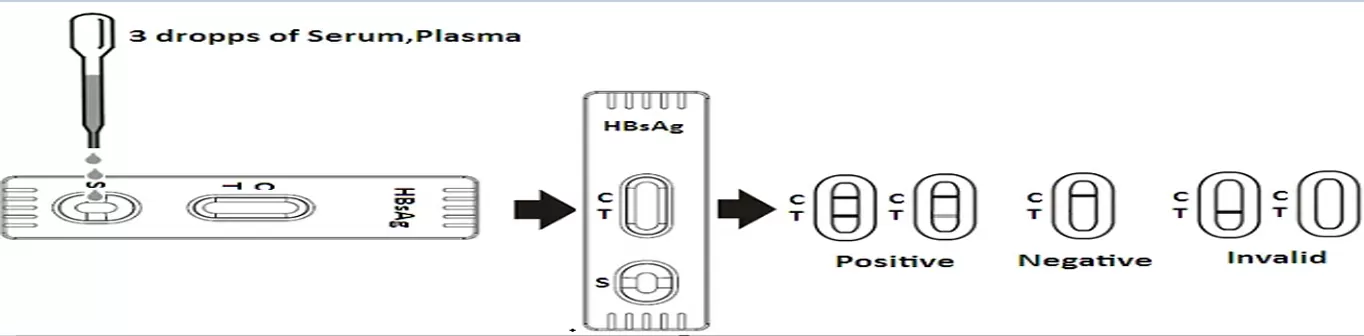

A. Rapid Lateral Flow Test:
Place the test cassette on a flat, dry surface.
Add 3-4 drops of sample (or buffer if specified) into the sample well.
Wait 10-15 minutes for visible lines (control + result).
B. ELISA Procedure:
Load samples, standards, and controls into pre-coated microplate wells.
Incubate (30-60 min at 37°C), wash, and add enzyme conjugate.
After further incubation, add TMB substrate for color development.
Stop the reaction and measure absorbance with a microplate reader.
C. PCR Testing:
Extract HBsAg Test DNA/RNA using the provided kit.
Prepare the PCR mix (primers, probes, master mix) and load it into the reaction tubes.
Run real-time PCR with recommended cycling conditions.
Rapid Test:
Positive: Control line (C) + test line (T) visible.
Negative: Only the control line (C) appears.
Invalid: No control line – repeat test.
ELISA/PCR:
Compare optical density (OD) or Ct values against cutoff standards.
Quantify viral load (if applicable).
Dispose of biohazard waste properly.
Record results and report as per clinical guidelines.
Note: Always refer to the product insert for specific instructions.
Early detection reduces the risk of HBV complications.
Cost-effective with minimal equipment requirements (for rapid tests).
Scalable for high-throughput testing in laboratories.
The HBsAg Test is an essential tool in global efforts to eliminate Hepatitis B.
The HBsAg Test is a vital tool in global efforts to eliminate Hepatitis B.


Ultra-Sensitive Detection:
Utilizes optimized monoclonal/polyclonal antibody pairs for detection levels as low as<0.1 IU/mL.
Ensures equal efficiency in detecting all major genotypes (A-H).
Features a unique pre-treatment step to dissociate immune complexes, significantly reducing false negatives.
Exceptional Specificity & Interference Resistance:
Demonstrates<0.01% cross-reactivity with HIV/HCV antibodies, Rheumatoid Factor (RF), and Human Anti-Mouse Antibodies (HAMA).
Internal hook effect prevention up to 500,000 IU/mL ensures accurate results for high-titer samples.
Dual-wavelength reading (450/630nm) minimizes background interference for cleaner signals.
Advanced Capabilities for Complex Cases:
Capable of identifying mutant HBsAg, crucial for detecting vaccine breakthrough infections.
Validated for Dried Blood Spot (DBS) testing, simplifying sample collection and transport.
Offers both quantitative and semi-quantitative reporting options to meet diverse clinical needs.
Versatile Assay Formats:
Rapid Tests: Cassettes with built-in procedural controls for flow verification.
ELISA 3.0: Features patented signal amplification technology, delivering 5x higher sensitivity than conventional ELISA.
Chemiluminescence (CLIA): Offers a wide dynamic range up to 50,000 IU/mL for high-throughput screening.
Designed for Full Automation:
Ready-to-use, pre-diluted reagents are compatible with fully automated platforms.
Barcode-enabled kits allow for seamless integration with Laboratory Information Systems (LIS/HIS).
Standardized 96-well plates are compatible with all major ELISA processors and robotic systems.
Exceptional Stability & Storage Advantages:
Lyophilized reagents (ELISA/CLIA) maintain stability for 24 months at 2-8°C.
Rapid test cassettes are stable for 18 months at room temperature (≤30°C), eliminating the need for a cold chain.
Unique desiccant-free packaging prevents moisture damage and extends shelf life.
This fourth-generation HBsAg assay combines diagnostic accuracy with operational excellence, outperforming conventional tests in:
✓ Earlier Detection: Identifies infections 5-7 days earlier, closing the diagnostic window period.
✓ Broader Coverage: Reliably detects immune escape variants often missed by other assays.
✓ Enhanced Throughput: Fully optimized for high-throughput, automated laboratory workflows.

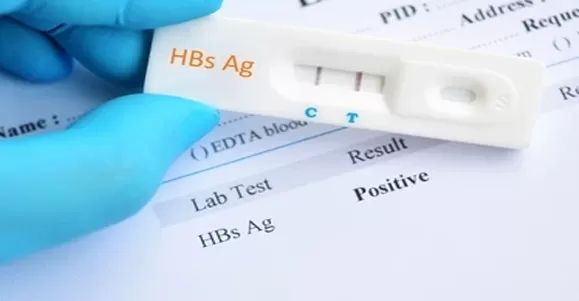

Our HBsAg test is a critical tool for a wide range of diagnostic and screening purposes across various healthcare settings.
Primary Screening: For the early detection of HBV in high-risk populations, including healthcare workers, pregnant women, and individuals with known exposure.
Clinical Diagnosis: To aid in the definitive diagnosis of both acute and chronic Hepatitis B infections.
Transfusion Safety: Essential for screening blood and plasma donors to prevent the transmission of HBV and ensure a safe blood supply.
Therapeutic Monitoring: To monitor disease progression and assess the effectiveness of antiviral therapy in patients undergoing treatment.
Hospitals, Clinics, and Diagnostic Laboratories
National and Regional Blood Banks
Public Health Centers for Epidemiological Surveillance
Research Institutions studying HBV
Pharmacies & Retail Health Clinics (for point-of-care rapid tests)
