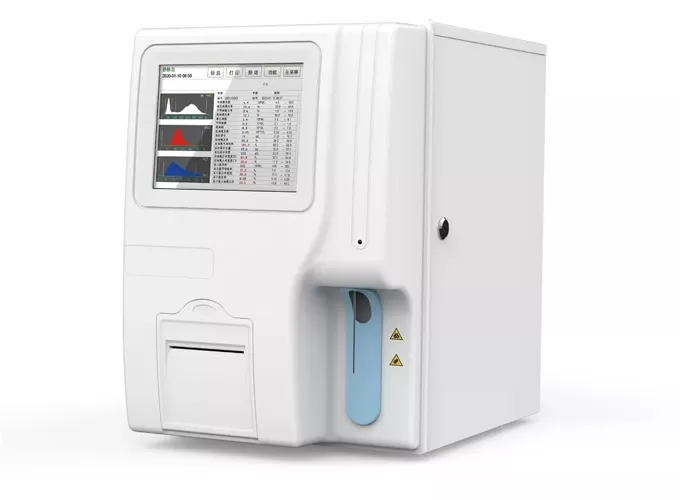

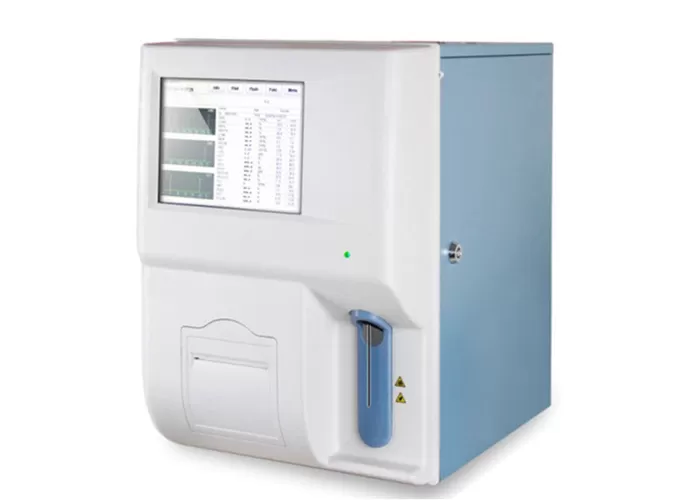

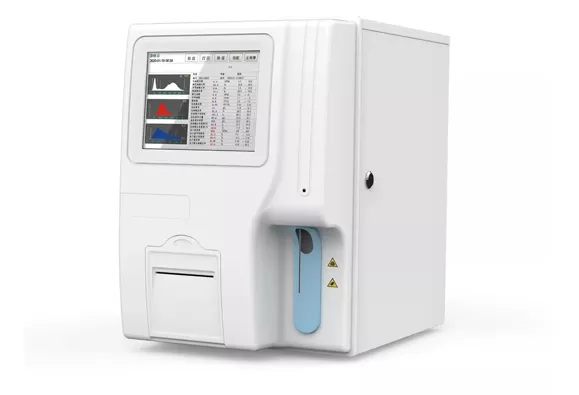

HA3100VET Veterinary Hematology Analyzer is a high-performance blood cell analyzer that uses electrical impedance method and environmentally friendly cyanide-free SFT method (fluoride-free) detection. It can accurately measure 23 parameters such as white blood cells (WBC), red blood cells (RBC), platelets (PLT), hemoglobin (HGB), etc., and supports three classifications of white blood cells, providing WBC, RBC, and PLT color histograms to help clinicians quickly screen blood diseases.
The instrument is equipped with an 8-inch color LCD touch screen, which can display all test parameters and histograms on the same screen. The results are clear and intuitive, and the operation is convenient. It supports micro-blood collection, only 10μL of peripheral blood or venous anticoagulated blood (20μL in pre-dilution mode) is required to reduce patient discomfort. It uses dual-channel detection technology to improve detection efficiency and accuracy, and has automatic anti-blocking function (high-pressure burning, backwash cleaning) to ensure long-term stable operation of the equipment.
HA3100VET can store more than 30,000 complete test data (including histograms), and supports data query and print output. It also provides supporting reagents to meet laboratory standardization requirements. It is suitable for hospital laboratories, clinics and scientific research institutions. It is an efficient, environmentally friendly and intelligent blood analysis device.
| Precision | |
| Parameters | Precision(Cv) |
| WBC | <2.0%(7.0-15.0x109)/L |
| RBC | <1.9%(3.5-6.0x1012)/L |
| HGB | <1.9%(110.0-180.0g)/L |
| MCV | <0.4%(80.0-110.0)fL |
| PLT | <4.0%(100.0-500.0x109)/L |
| Measurement range | |
| Parameters | Measurementrange |
| WBC | (0-99.9x109)/L |
| RBC | (0-9.99x1012)/L |
| HGB | (0-300.0)g/L |
| PLT | (0-999x109)/L |
| Physical characteristic | |
| Dimension | 433mm(L)×300mm(W)×430mm(H) |
| Weight | 19kg |
| Operating Environment | |
| Temperature | 15℃~35℃ |
| Relative humidity: | ≤70% |
| Atmospheric pressure: | 70.0kPa~106.0kPa |
| Storage Environment | |
| Temperature | -40℃~55℃ |
| Relative humidity | ≤93% |
| Atmospheric pressure | 50.0kPa~106.0kPa |
8-inch color touch screen, supports the display of test parameters and histograms on the same screen, and the operation is intuitive and easy.
Three classifications of white blood cells, 23 parameters (including WBC, RBC, PLT color histograms).
Adopt environmentally friendly cyanide-free SFT method to determine hemoglobin, which meets the environmental protection requirements of modern laboratories.
Micro-detection, 10uL peripheral blood or venous anticoagulation, pre-dilution mode 20uL.

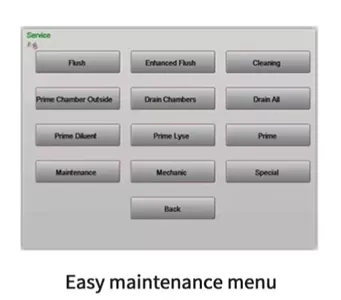

Innovative anti-blocking design, including high-pressure burning gem hole, backwashing immersion and other multiple anti-blocking technologies, combined with automatic cleaning function to ensure detection stability.
Built-in large-capacity storage, can save more than 30,000 complete test results.

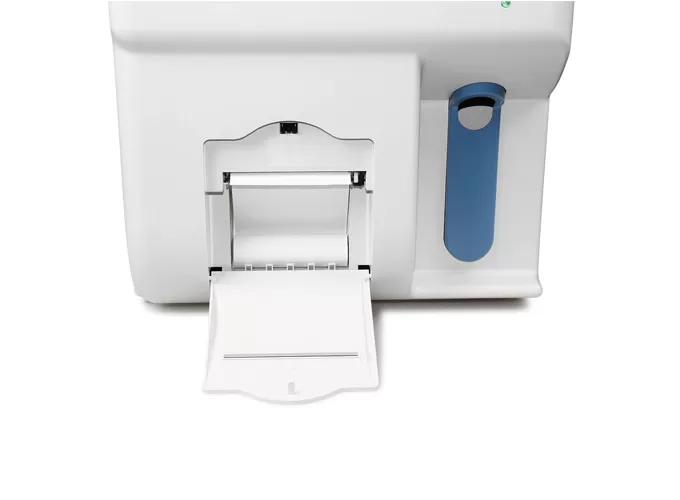

Supports multiple printing output methods, including built-in thermal printing and serial port printing.

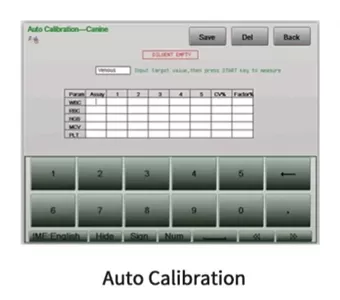

With intelligent quality control management and calibration management functions to ensure detection accuracy.
Specially designed floating boundary algorithm and abnormal prompt function can automatically identify abnormal samples.
Dual-channel detection.
Matching reagents can be provided.

1. Turn on the instrument and wait for the system self-test to complete (about 2 minutes)
2. Prepare samples: Collect 2ml of venous blood/peripheral blood (EDTA anticoagulation), gently invert and mix 8-10 times (avoid violent shaking)
3. Sample test: Place the mixed sample into the injection area, and start the test after confirming that the sample volume is ≥0.5ml
4. After the test is completed, the results are automatically displayed, the screen is checked, the report is printed (press the print button), and the data is stored
Department application
Laboratory department: routine blood test
Emergency department: rapid acquisition of blood indicators
Physical examination center: large-scale physical examination screening
Primary medical institutions: basic blood test
