Fetal Doppler for Sale

Name: Fetal Doppler
Brand: JCMED(TIANJIN) IMPORT&EXPORT CO., LTD.

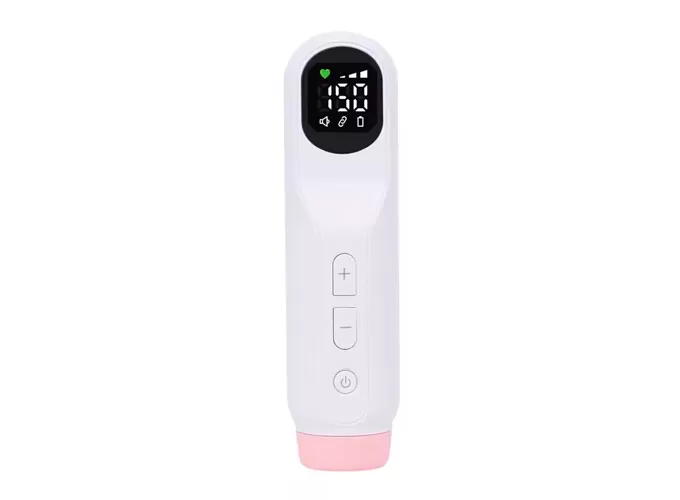

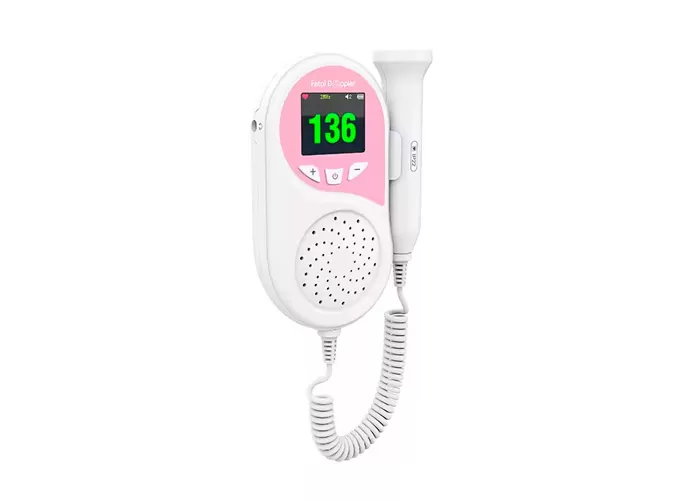

The portable fetal heart monitor is a handheld fetal heart monitor designed for pregnant women to perform daily fetal heart rate monitoring by themselves. Pregnant women can listen to the fetal heart sounds and calculate the fetal heart rate by themselves to achieve the purpose of pre-pregnancy monitoring and fetal care.

It is mainly suitable for pregnant women who are more than 12 weeks pregnant, especially those who have a history of adverse pregnancy and childbirth, have a high risk of fetal developmental abnormalities, or are more concerned about the health of the fetus. It can help pregnant women monitor the fetal heart rate at home, understand the health of the fetus in time, and increase the sense of security during pregnancy. However, for some pregnant women with severe pregnancy complications or who are considered by doctors to be unsuitable for self-monitoring, they should follow the doctor's advice and use it with caution or avoid it.

Get A Quote 

Specifications of Fetal Doppler

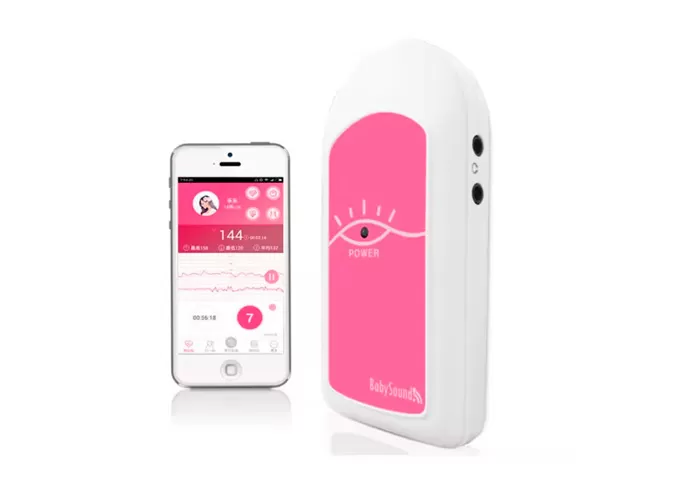

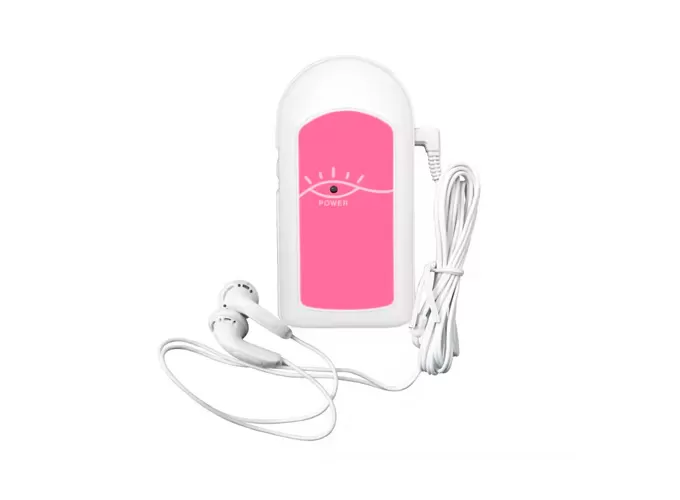

Baby Sound A

Design	Double Headphone Jacks.
Material	Plastic
Power Supply	Two 1.5V Batteries.(Aaa Lro3)
Dimension	110 Mm(L) 55 Mm(W) 16.8 Mm(H)
Weight	About 80 G (Including Batteries)

Baby Sound C1

Working Mode	Real-Time Fhr Display Mode Averaged Fhr Display Mode Manual Mode.
Power Supply	Two 1.5V Batteries.(Aa Lr6)
Optional Probes	2Mhz/3Mhz/8Mhz Probe.
Accuracy	± 2 Bpm
Power Supply	Two 1.5V Batteries (Type: Aa Lr6)
Dimension	135 Mm(L)92 Mm(W)29 Mm(H)
Weight	About 245 G (With Battery)

JC10A

Display	1.77＂ Lcd Screen
Fhr Measurement And Display Range	50 Bpm ～ 240 Bpm (Bpm Beats Per Minute)
Resolution	1 Bpm
Accuracy	± 2 Bpm
Rated Working Voltage	Dc3 V
Battery Type	Two 1.5V Batteries (Aa Lr6)
Probe
Nominal Frequency	3.0 Mhz
Working Frequency	3.0 Mhz ± 10％
Negative Peak Sound Pressure	P_ ＜ 1 Mpa
Output Beam Intensity	Iob ＜ 20 mW/cm²
Spatial-Peak Temporal-Average Derived Intensity	Ispta ＜ 100 mW/cm²
Ultrasonic Output Power	P ＜ 20 MW
Working Mode	Continuous Wave Doppler
Effective Radiating Area Of Transducer	≤ 208 Mm²

JC10A(Led)

Fetal Heart Rate Resolution	1 Bpm
Precision Accuracy	+2 Bpm
Working Mode	Continuous Wave Doppler
Display	Led Display
Nominal Frequency	3.0 Mhz
Working Frequency	3.0 Mhz ± 10%
Battery Type	Two 1.5V Batteries (Aalr6)
Dimension	151 Mm(L) X 96 Mm(W) X 33 Mm(H)
Weight	About 207 G(Including Batteries)

JC10B

Safety Classification	Internally Powered Equipment, Type Cf Applied Part
Display	1.77＂ Lcd Screen
Fhr Measurement And Display Range	50 Bpm ～ 240 Bpm (Bpm Beats Per Minute)
Resolution	1 Bpm
Accuracy	± 2 Bpm
Rated Working Voltage	Dc3 V
Battery Type	Two 1.5V Batteries (Aa Lr6)
Nominal Frequency	2.0 Mhz
Working Frequency	2.0 Mhz ± 10％
Negative Peak Sound Pressure	P_ ＜ 1 Mpa
Output Beam Intensity	Iob ＜ 20 mW/cm²
Spatial-Peak Temporal-Average Derived Intensity	Ispta ＜ 100 mW/cm²
Ultrasonic Output Power	P ＜ 20 MW
Working Mode	Continuous Wave Doppler
Effective Radiating Area Of Transducer	≤ 208 Mm²

JC10C

Fetal Heart Rate Resolution	1 Bpm
Precision Accuracy	+2 Bpm
Working Mode	Continuous Wave Doppler
Nominal Frequency	3.0 Mhz
Working Frequency	3.0 Mhz ± 10%
Battery Type	Two 1.5V Batteries (Aalr6)
Dimension	151 Mm(L) X 96 Mm(W) X 33 Mm(H)
Weight	About 207 G(Including Batteries)

JC10D

Fetal Heart Rate Range	50BPM-240BPM(BPM BEATS PER MINUTE)
Fetal Heart Rate Resolution	1BPM
Working Mode	Pulsed ultrasonic Doppler
Precision Frequency	2.5MHz
Precision	士2BPM
Display	LED display
Operating Frequency	2.5MHz±10%
Peak Negative Sound Pressure	p≤l MPa
Power Supply	3.7V rechargeable lithium battery

JC10E

Safety classification	internally powered equipment, type CF applied part
Display	LED screen
FHR measurement and display range	50 BPM ~ 240 BPM (BPM beats per minute)
Resolution	1 BPM
Accuracy	± 2 BPM
Rated working voltage	DC3 V
Battery type	Two 1.5V batteries (AA LR6)
Degree of protectionagainstingress of liquid	IP22
Nominal Frequency	2.5 MHz
Working Frequency	2.5 MHz ± 1096
Negative Peak Sound Pressure	p_ < 1 MPa
Output Beam Intensity	bb < 20 mW/cm
Spatial-peak Temporal.average Derived Intensity	hota < 100mW/cm
Ultrasonic Output Power	P < 20 mW
Working Mode	Pulse wave Doppler
Effective Radiating Area of Transducer	490 M㎡± 1596

JC10F

Safety classification	internally powered equipment, type CF applied part
Display	LED screen
FHR measurement and display range	50 BPM ~ 240 BPM (BPM beats per minute)
Resolution	1 BPM
Accuracy	± 2 BPM
Rated working voltage	DC3 V
Battery type	Two 1.5V batteries (AA LR6)
Degree ofprotection against ingress ofliquid	IP22robe
Nominal Frequency	2.5 MHz
Working Frequency	2.5 MHz ± 10%
Negative Peak Sound Pressure	p_< 1 MPa
Output Beam Intensity	bb < 20 mW/cm
Spatial-peak Temporal-average
Derived Intensity	lpta < 100mW/cm²
Ultrasonic Output Power	P < 20 mW
Working Mode	Pulse wave Doppler
Effective Radiating Area of Transducer	490 M㎡± 15%

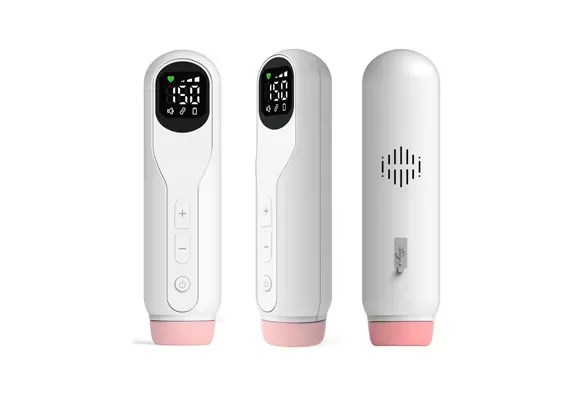

Features of Fetal Doppler

Features

Exquisite and compact design, easy to carry: suitable for use at home, travel or out, monitor fetal heartbeat anytime and anywhere.

Unique dual headphone jack design: Let the expectant father and expectant mother participate together to enhance parent-child interaction and emotional connection.

High-sensitivity Doppler probe: The high-sensitivity probe can quickly and accurately capture the fetal heartbeat.

Low ultrasound output intensity, high safety quality: ensure the safety of the fetus and pregnant women, non-invasive and painless, and can be used with confidence.

Low power consumption design: Long battery life, reducing the trouble of frequent battery replacement, suitable for long-term use.

Fetal Heart Rate Monitor Operation Steps

1. Preparation

Check the power of the device to ensure that it is fully charged.

Prepare coupling agent (such as medical ultrasound gel).

2. Pregnant position

Pregnant women lie flat or half-lying, relax their abdomen and expose their lower abdomen.

3. Apply coupling agent

Apply an appropriate amount of coupling agent on the probe surface.

4. Find the fetal heart

Place the probe gently on the lower abdomen (above the pubic bone) and move slowly to find the fetal heartbeat.

After hearing the "dong dong" sound, observe the fetal heart rate displayed on the screen (normal range: 110-160 beats/minute).

5. End of use

Record data.

Turn off the device and clean the probe.

Notes

Use for no more than 10 minutes each time.

If you cannot find the fetal heart rate, try again later or adjust the position.

If you find any abnormalities (such as a high or low heart rate), seek medical attention immediately.

Fetal Doppler Applicable Population

Pregnant women

Ordinary pregnant women: Used to monitor fetal heartbeat at home to increase peace of mind.

Pregnant women with high-risk pregnancy: Pregnant women with pregnancy-induced hypertension, diabetes or multiple pregnancies need to monitor fetal health more frequently.

Pregnant women with a history of miscarriage or premature birth: Help monitor whether the fetus is developing healthily.
