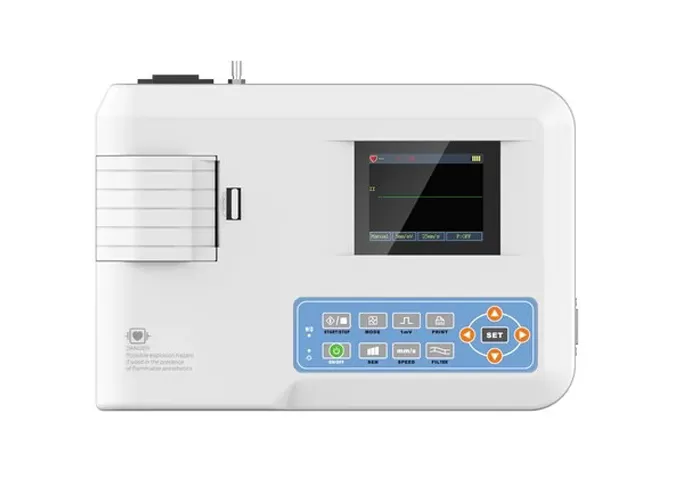

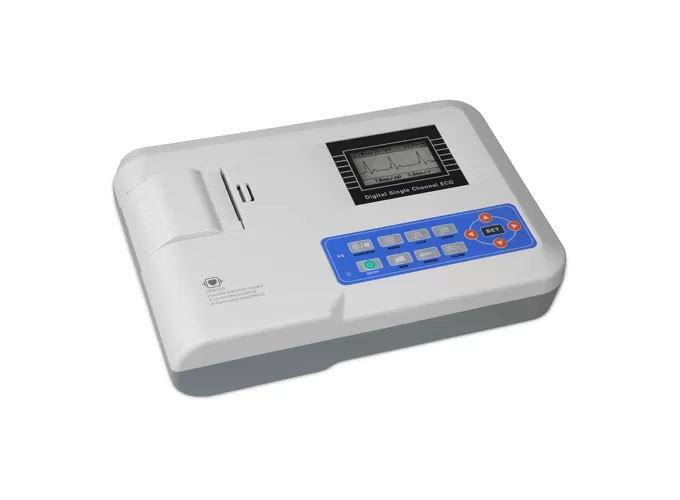

ECG100G-VET Electrocardiograph for Sale

Name: ECG100G-VET Electrocardiograph
Brand: JCMED(TIANJIN) IMPORT&EXPORT CO., LTD.

ECG100G-VET is a high-performance single-channel electrocardiograph designed for animal medical treatment. It uses advanced digital signal processing technology to ensure clear and stable ECG signals. The device effectively suppresses interference through power frequency filtering, baseline filtering and electromyography filtering, and outputs high-quality ECG waveforms. It is suitable for heart health monitoring of dogs, cats and other animals.

The device is equipped with a high-resolution thermal printing system (8 dots/mm), which does not require manual adjustment and supports a recording frequency of up to 150Hz. It can print accurate ECG waveforms and annotation information (such as lead markings, sensitivity, paper feed speed, etc.) in real time. Its automatic mode simplifies operation, and one-click recording can be completed to improve diagnosis and treatment efficiency; the manual mode meets personalized needs. At the same time, ECG100G-VET has "lead detachment" and "paper shortage" intelligent prompt functions to avoid operation interruptions.

It supports 9 language interfaces and report outputs including Chinese, English, and French, adapting to international application scenarios. The battery life is excellent, with a full charge of 7 hours of standby and 4 hours of continuous printing. It can store up to 150 ECG data, which is suitable for clinical or out-of-office use. The lightweight design combined with intelligent functions makes it an efficient and reliable diagnostic assistant for veterinarians.

Get A Quote 

Specifications of ECG100G-VET Electrocardiograph

Performance

1）Input mode: Floating and defibrillation protection

2）Frequency response: 0.05Hz~150Hz (-3dB~+0.4dB)

3）CMRR: ＞60dB, ＞100dB (Filter ON)

4）Time constant: ≥3.2s

5）Patient leak current:<10µA

6）Calibration voltage: 1mV

7）Sensitivity choice: 5/10/20mm/mV, error: ±5%. Standard sensitivity: 10mm/mV, error: ±2%

8）Noise level: ≤15µVp-p

9）Input loop current: ≤50nA

10）Input impedance: ≥50MΩ

11）Sampling accuracy: 12bit

12）Security type: CF type of classⅠ, anti-defibrillation applied part

13）Recording way: Thermal printing system

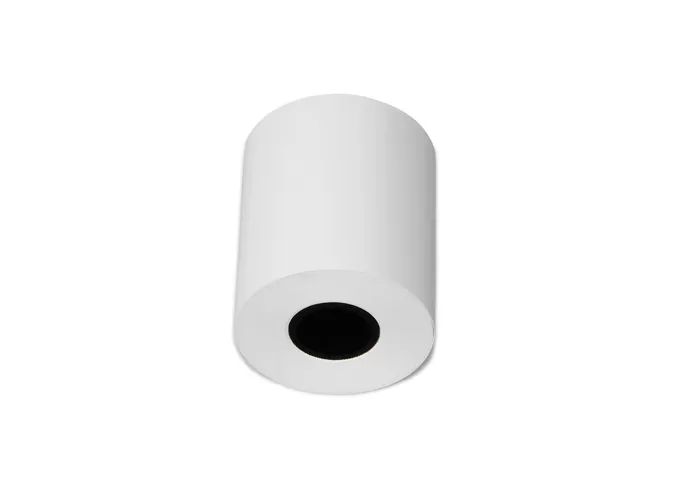

14）Specification of recording paper:50mm(W) × 20mm(L) High-speed thermal paper

15）Sampling rate: 800Hz

16）Power frequency filtration: AC 50Hz/60Hz

17）Paper speed: 25/50mm/s, error: ±5%

18）Power supply: AC: 100V～240V(50/60Hz)

19）DC: Rechargeable lithium battery 7.4V/2000mAh

20）Fuse specification: φ5×20mm, 2 pieces; AC time lag; T1.6AL250V

21）Anti-deleterious fluid degree: IPX0

22）Working mode: continuous operation device

Working Temperature	5℃～40℃
Relative humidity	25%≤90% (no condensation)
Atmospheric pressure	700hPa～1060hPa
Transportation and storageTemperature	-40℃～55℃
Relative humidity	≤95%
Atmospheric pressure	500hPa～1060hPa
Dimension	315mm215mm77mm
Net weight	1.5Kg

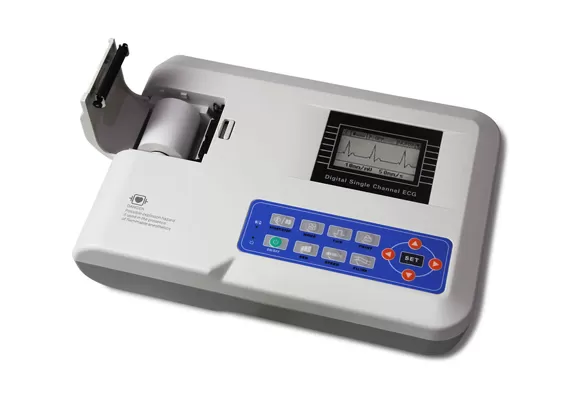

Features of ECG100G-VET Electrocardiograph

Features

High-precision signal processing

Adopts advanced digital filtering technology (power frequency filtering, baseline filtering, and electromyography filtering) to effectively suppress interference and ensure that the animal ECG waveform is clear and stable. It is suitable for heart monitoring of animals of different sizes, such as dogs and cats.

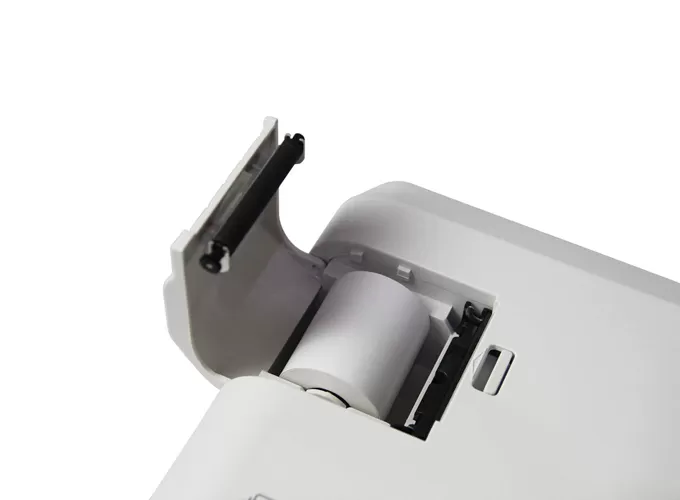

Convenient and efficient thermal printing

High-resolution printing (8 dots/mm), no manual adjustment required, supports 150Hz high-frequency recording, and real-time output of ECG and key parameters (lead marking, sensitivity, paper feed speed, etc.) for quick diagnosis.

Intelligent operation mode

One-button automatic recording: simplifies the operation process and improves the efficiency of diagnosis and treatment.

Flexible adjustment of manual mode: meets the personalized needs of special cases.

Multi-language support

Provides interfaces and reports in 9 languages, including Chinese, English, French, and German, to meet the global veterinary clinical needs and facilitate use in different regions.

Long-lasting battery life and large-capacity storage

Up to 7 hours of standby and 4 hours of continuous printing to meet long-term work needs.

Stores up to 150 ECG data for subsequent analysis and case management.

Intelligent reminder function

Real-time monitoring of device status, prompting "lead detachment" or "paper shortage", avoiding operation interruption and ensuring smooth inspection.

Lightweight and durable design

Specially optimized for veterinary hospitals and out-of-office scenarios, taking into account portability and stability, it is an ideal tool for animal heart health monitoring.
