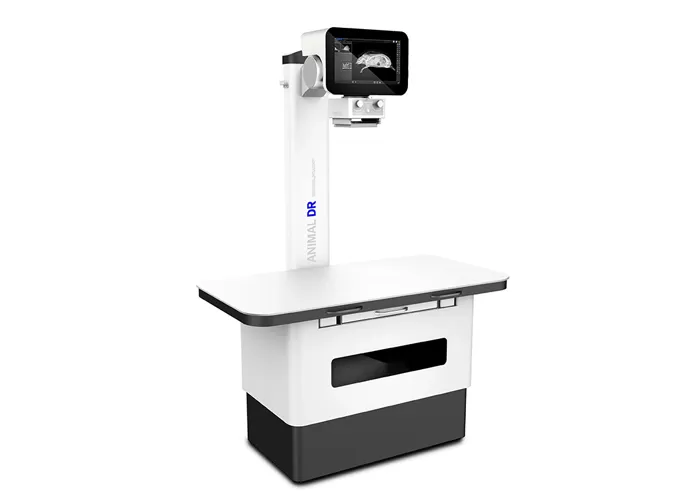

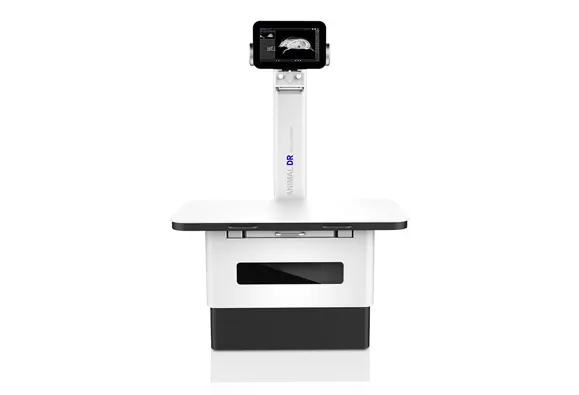

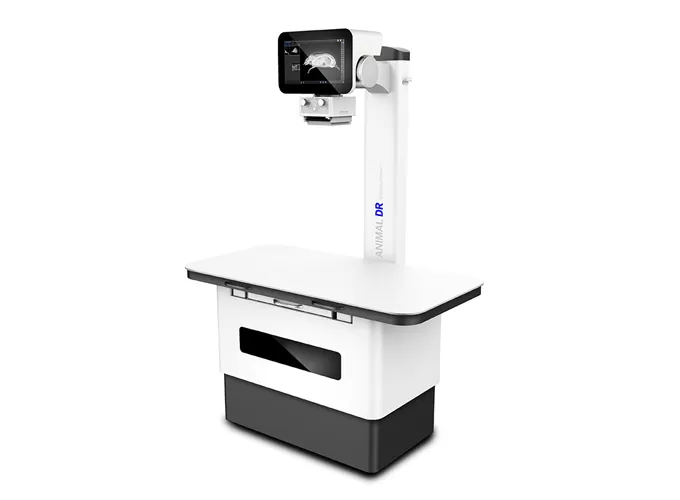

DR-A/B Veterinary X-ray Machine for Sale

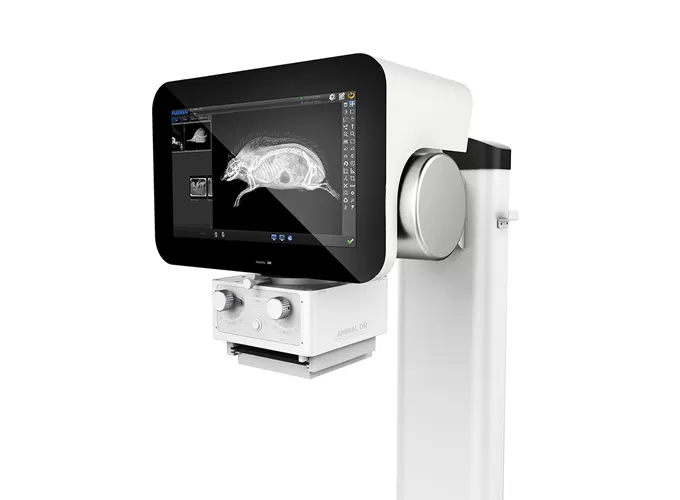

The DR-B veterinary X-ray machine is a high-performance digital radiographic imaging system designed for the animal medical field. With advanced imaging technology and intelligent operation, it provides efficient and accurate diagnostic support for pet clinics, veterinary hospitals and livestock farms. The system is equipped with a 15.6-inch IPS touch screen and an ultra-high-resolution 3072×3072 scanning matrix. With a tiny pixel size of 140μm, it can clearly present the fine structure of bones, joints and soft tissues within an imaging range of 430×430mm, ensuring the accuracy of diagnosis.

DR-B adopts an intelligent exposure control system, supports 10~400mA tube current adjustment and 1.0/2.0mm dual focus selection, can automatically optimize exposure parameters according to different animal sizes and shooting parts, and synchronize with the workstation in real time, greatly improving operating efficiency. Equipped with a super-scintillation detector and a 900KJ high-heat radiator tube, the imaging time does not exceed 1 second, effectively reducing the restlessness of animals caused by long-term exposure, while ensuring the stable operation of the equipment during continuous shooting.

This model is compatible with a 1400×720mm (±50mm) shooting table and a 1000mm (±50mm) source image distance (SID), meeting the shooting needs of different body positions. The 32kW high-voltage output ensures the penetration of thick parts of large animals. The real-time X-ray display function allows veterinarians to view images instantly and make diagnostic decisions quickly. With its excellent imaging quality, intelligent operating experience and stable performance, the DR-B veterinary X-ray machine has become a trustworthy imaging diagnostic tool in the field of modern animal medicine.
