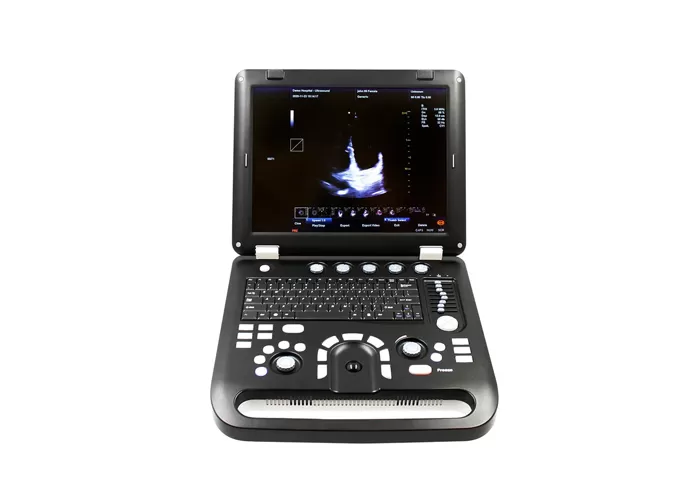

CMS1700C-VET Veterinary Ultrasound for Sale

Name: CMS1700C-VET Veterinary Ultrasound
Brand: JCMED(TIANJIN) IMPORT&EXPORT CO., LTD.

CMS1700C-VET Color Doppler Ultrasonic Diagnostic System is a high-performance color Doppler ultrasound diagnostic instrument designed for animal diagnosis and treatment. It integrates portability, high-precision imaging and intelligent operation, and is suitable for pet hospitals, animal husbandry and scientific research.

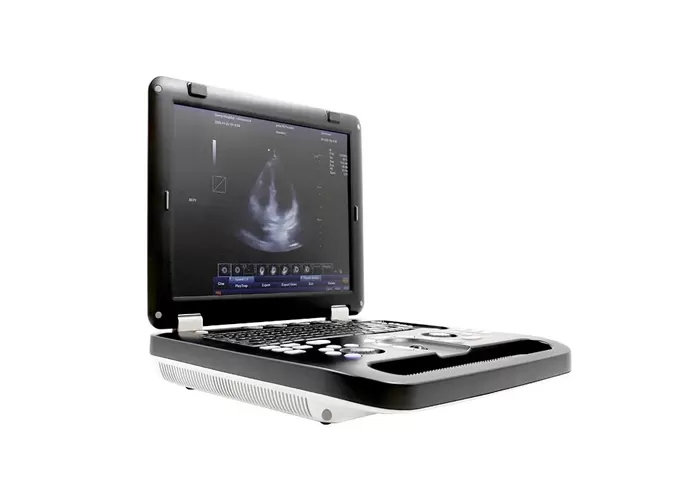

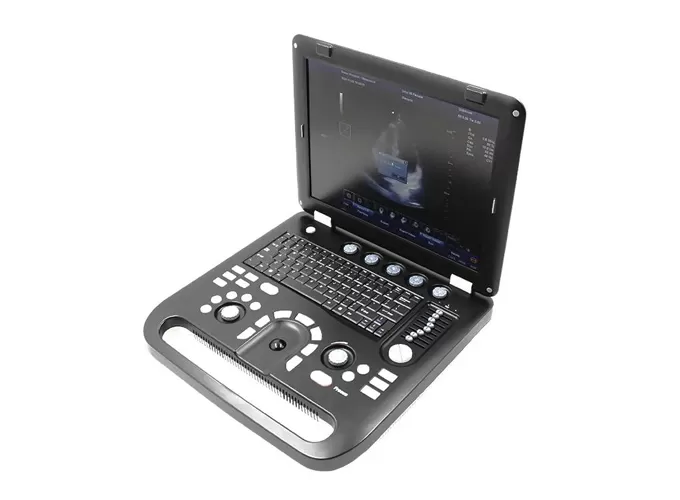

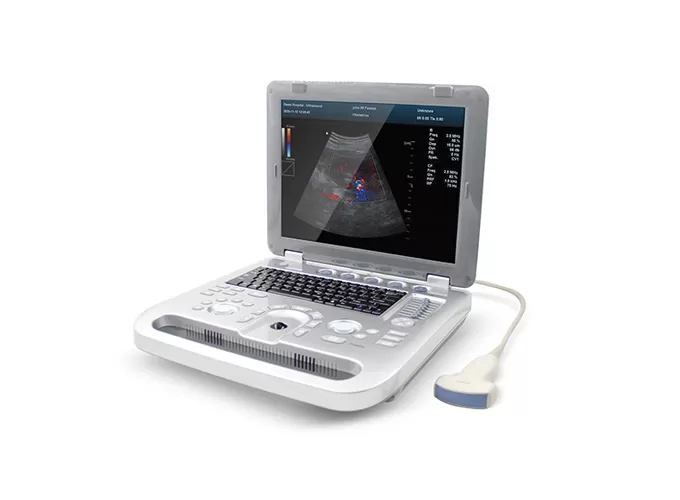

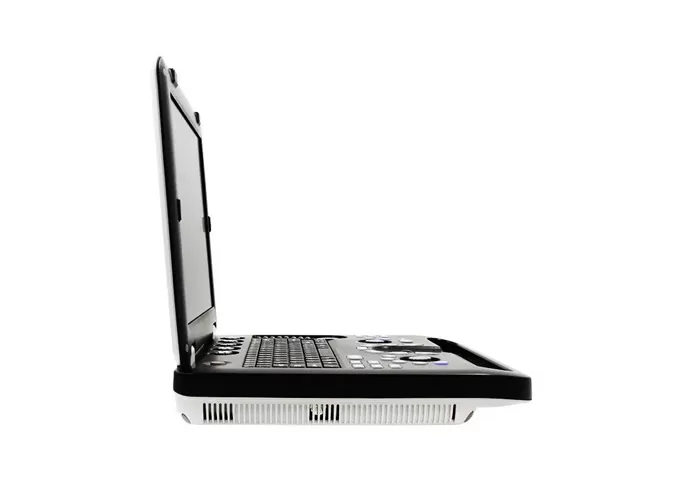

The device adopts a laptop-style thin and light design with a built-in lithium battery, which is easy to carry and mobile for inspection, meeting the needs of veterinary visits and field diagnosis and treatment. Equipped with a 15-inch high-resolution LED display, the image is clear and delicate, and supports high brightness and contrast adjustment to ensure accurate identification of complex lesions. The operation interface supports switching between Chinese and English, and combines a touch-sensitive keyboard, trackball and encoder design to greatly improve the convenience of operation. At the same time, the high-speed USB interface and printing function support fast data storage and report output, optimizing the workflow.

In terms of functions, CMS1700C-VET is equipped with advanced digital beamforming technology, tissue harmonic imaging (THI) and speckle noise suppression technology to significantly improve image quality. It supports multiple imaging modes such as B-ultrasound, color blood flow (CF), power Doppler (PDI) and spectral Doppler (PW), and can be equipped with 3D/4D imaging and wide scene scanning to meet different clinical needs. In addition, the device has built-in professional obstetric measurement software, covering the calculation of gestational age and expected delivery date of 8 animals such as cattle, horses, dogs and cats, and has the function of automatic analysis of pig back fat and lean meat rate, providing a scientific basis for animal husbandry production.

With powerful imaging performance, multi-species adaptability and intelligent design, CMS1700C-VET has become an ideal imaging diagnostic tool for animal medical treatment, breeding management and scientific research.

Get A Quote 

Specifications of CMS1700C-VET Color Doppler Ultrasonic Diagnostic System

Physical characteristic
Dimension	370mmx360mmx 80mm
Weight	6.5kg
Display depth	≥ 300 mm

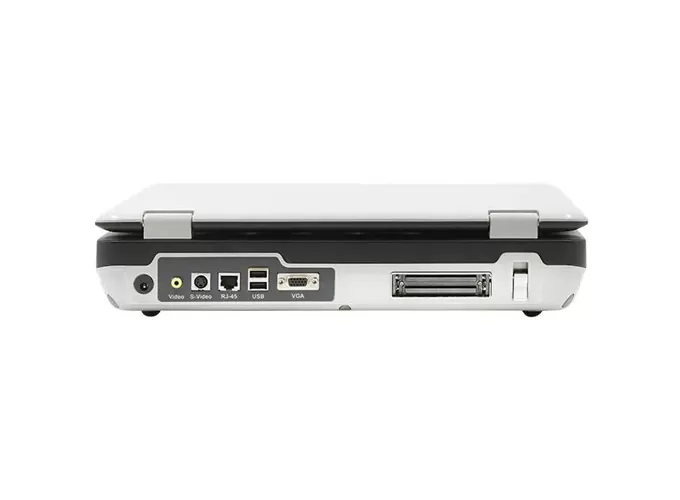

Extended interface	VlDEO interface -VlDEO interface RJ-45 interface USB interface VGA interface
Power consumption	≤ 100 VA
Operating frequency	50 Hz/60 Hz
Operating voltage	AC 100 V~240 V

Advantages of CMS1700C-VET Color Doppler Ultrasonic Diagnostic System

Advantages

1. Portability and efficient design

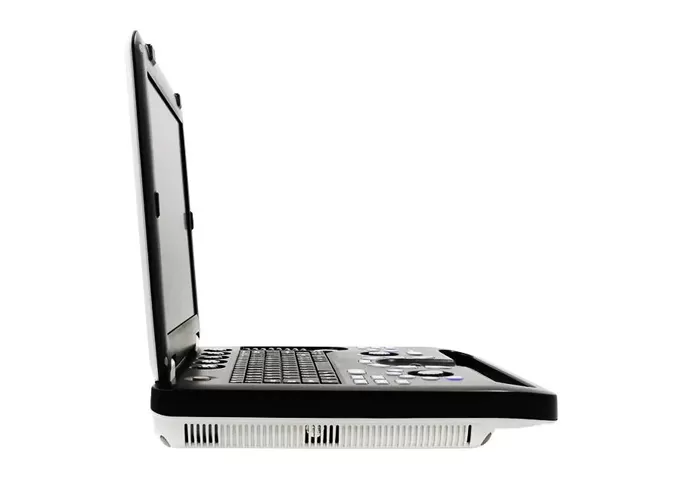

The laptop-style thin and light body is easy to carry and suitable for veterinary visits, ranch inspections and mobile diagnosis and treatment.

Built-in lithium battery, free from power supply limitations, suitable for long-term use in the field or in an environment without power supply.

15-inch high-resolution LED display, high brightness, high contrast, clear and delicate images, improve diagnostic accuracy.

2. Intelligent operation experience

Chinese/English bilingual interface, menu-based operation, to meet the needs of different users.

Touch keyboard + trackball + encoder, easy to operate and improve inspection efficiency.

High-speed USB interface, supports large-capacity storage, can be connected to a color laser printer, and quickly output diagnostic reports.

3. Multi-species adaptation and professional measurement

Obstetric measurement function: supports the calculation of expected delivery date and gestational age of 8 animals such as cattle, horses, dogs, cats, pigs, etc., suitable for breeding management.

Automatic calculation of pig backfat and lean meat rate helps to analyze the benefits of animal husbandry production.

4. Advanced imaging technology

B+CF (dual image), B+CF/PDI/DPDI+PW (triple mode) to achieve simultaneous observation of blood flow and tissue.

Convex expansion imaging, linear array deflection/trapezoidal imaging to optimize the scanning effect of different parts.

Spatial compound imaging to improve image resolution and signal-to-noise ratio.

Optional wide scene imaging, suitable for large-scale scanning needs.

Optional 3D/4D imaging to provide three-dimensional anatomical structure visualization.

5. High-definition image optimization technology

Speckle noise elimination technology to reduce image interference and improve signal-to-noise ratio.

Pulse inversion tissue harmonic imaging (iTHI) to enhance the imaging quality of deep tissues and improve diagnostic accuracy.

With its advantages of portable design, intelligent operation, multi-species adaptation, and advanced imaging technology, CMS1700C-VET provides efficient and accurate ultrasound diagnostic solutions for animal medicine, animal husbandry and scientific research.

Steps for Using a CMS1700C-VET Color Doppler Ultrasonic Diagnostic System

Preparation for power on: connect the probe, press the power button to turn on the instrument, and select the appropriate operating language

Animal preparation:

Properly fix the animal, shave the hair of the inspection area, and apply an appropriate amount of coupling agent

Start the inspection: select the appropriate mode (B-ultrasound/color Doppler), adjust the image parameters, and move the probe smoothly to scan the target area

Save the results: save after freezing the image, and connect the printer to output the report

End the inspection: clean the probe and the body, and turn off the power

Precautions

Probe protection: high-temperature disinfection or soaking is prohibited, and medical alcohol cotton pads are used for cleaning.

Battery management: when not in use for a long time, charge once a month to maintain battery health.

Animal safety: avoid scanning the same part for a long time to prevent tissue overheating.

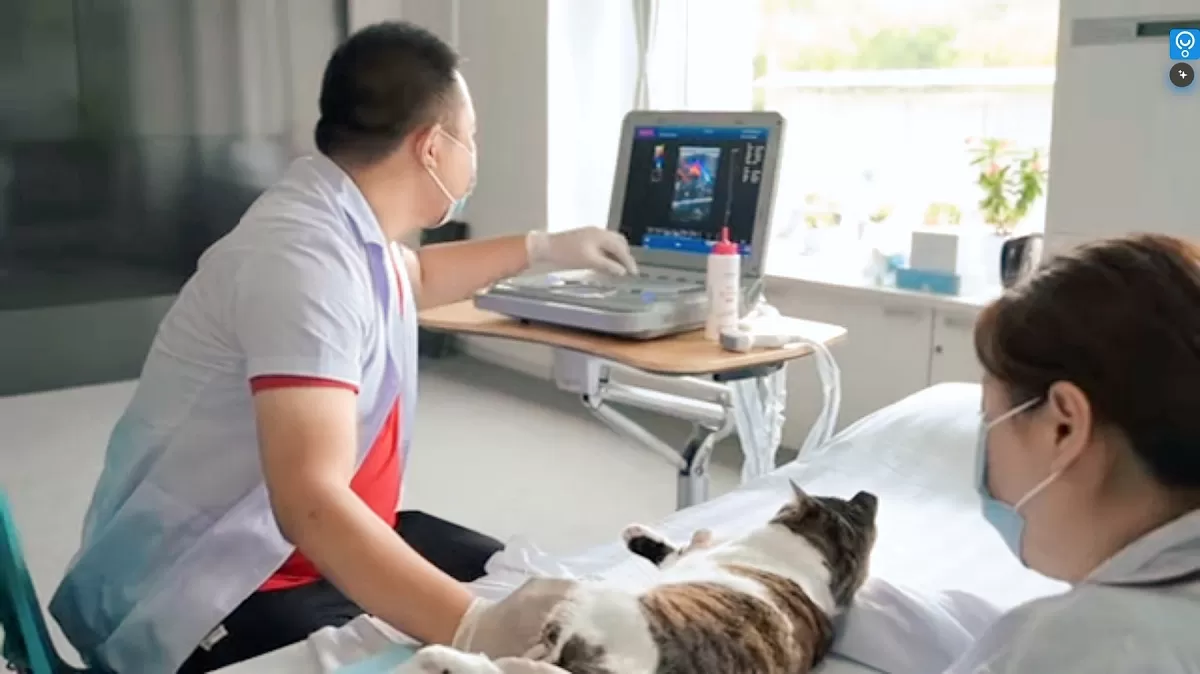

Application of CMS1700C-VET Veterinary Ultrasound

Cardiovascular system examination: evaluation of cardiac structure and function, diagnosis of congenital heart disease, pericardial effusion detection, diagnosis of vascular disease:

Abdominal organ examination: diagnosis of solid organ lesions such as liver, gallbladder, spleen, etc.

Digestive system examination: gastrointestinal examination

Urinary system examination: diagnosis of kidney disease, diagnosis of bladder disease

Reproductive system examination: pregnancy diagnosis and fetal monitoring, uterine and ovarian disease examination, prostate evaluation (male animals)

Applicable animal range

Companion animals: dogs, cats, etc.

Economic animals: cattle, pigs, sheep, horses, etc.

Experimental animals: rabbits, mice, etc.

Special animals: poultry, reptiles, etc. (special probes are required)

Note: In specific applications, it is necessary to select appropriate probes and parameter settings according to the animal species and the examination site, and make comprehensive judgments in conjunction with other diagnostic methods when necessary.
